Green Series 2 (GT2)
Product Model

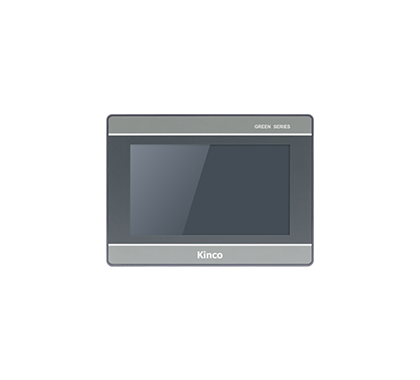

GT2100E
Add comparison
Cancel comparison

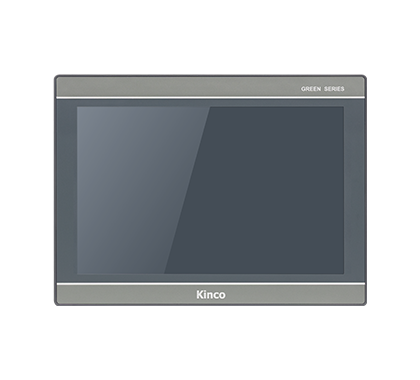

GT2101E
Add comparison
Cancel comparison

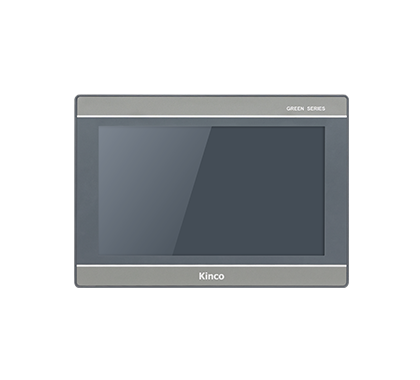

GT2121E2
Add comparison
Cancel comparison

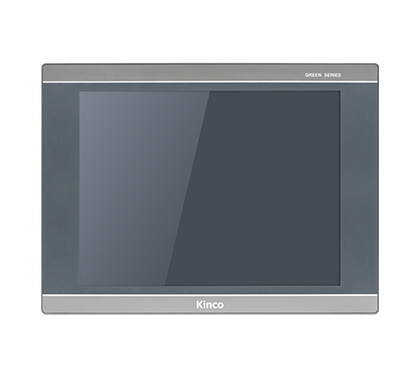

GT2150E2
Add comparison
Cancel comparison

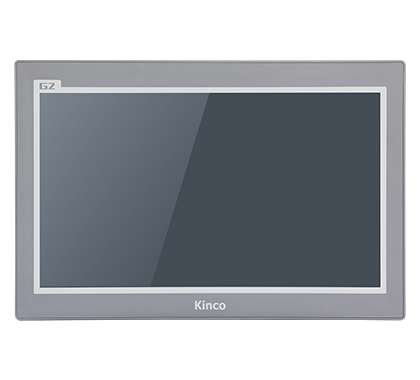

GT2156E-WIFI
Add comparison
Cancel comparison

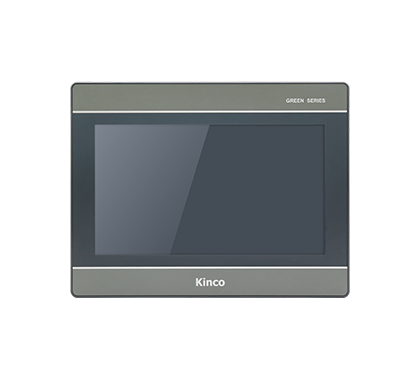

GT2070HE
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1
10.1
12.1
15
15.6
7
Display Area (mm)
222.72mm(H)x 125.28mm(V)
222.72mm(H)x 125.28mm(V)
261.12(H)x163.20(V)
304.1(H)x228.1(V)
344.16(W)x193.59(H)
154.21(H)×85.92(V)
Resolution
1024*600
1024*600
1280*800
1024*768
1920*1080
1024*600
Display Colors
16.7 million
16.7 million
16.7 million
16.7 million
65535
16.7 million
Viewing Angle
70/70/50/70 (L/R/U/D)
70/70/50/70 (L/R/U/D)
70/70/50/70 (L/R/U/D)
70/70/60/70 (L/R/U/D)
80/80/80/80 (L/R/U/D)
70/70/50/70 (L/R/U/D)
Contrast Ratio
500:1
500:1
1200:1
2500:1
800:1
500:1
Backlight
LED
LED
LED
LED
LED
LED
Brightness (cd/m²)
300
400
400
350
250
300
Backlight Life
>30000 hours
>30000 hours
50000 hours
70000 hours
>30000 hours
>30000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
Processor
Fold up
Expand
CPU
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
GPU
-
-
-
-
-
-
NPU
-
-
-
-
-
-
Memory
Fold up
Expand
RAM
512M
512M
512M
512M
512M
512M
Flash Memory
4GB
4GB
4GB
4GB
4GB
4GB
Interfaces
Fold up
Expand
USB Host
1
1
1
1
1
1
USB Slave
1
1
1
1
1
1
Ethernet
1
1
2
2
1
1
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
4G
-
-
-
-
-
-
WIFI
-
-
-
-
IEE802.11 b/g/n
-
Audio Interface
-
-
-
-
-
-
Other Interfaces
-
-
-
-
-
-
HDMI
-
-
-
-
-
-
RFID
-
-
-
-
-
-
Programmable Keys
-
-
-
-
-
-
Selector Switch
-
-
-
-
-
-
Emergenccy Stop
-
-
-
-
-
-
Grip Switch
-
-
-
-
-
-
LED Indicator
-
-
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
Power Consumption
7W@24VDC
7W@24VDC
15W@24VDC
15W@24VDC
15W@24VDC
7W@24VDC
Allowable Power Loss Time
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Voltage Endurance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Metal
Engineering plastic
Dimensions (mm)
280x193x36(mm)
271x213x38(mm)
309x229x43(mm)
398x298x47(mm)
395x259x25.5(mm)
204x150x37(mm)
Panel Cut-out (mm)
260x 179(mm)
260x202(mm)
299x 219(mm)
383x 283(mm)
382x246mm
192x 138(mm)
Mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting & Bracket mounting (100*100)
Panel mounting
Cable
-
-
-
-
-
-
Mounting Accessories
-
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Protection
Fold up
Expand
Power Isolation
-
-
Yes
Yes
Yes
-
Serial Port Isolation
-
-
-
-
-
-
PCB Coating
-
-
-
-
-
-
Degree of Protection
IP65
IP65
IP65
IP65
IP65
IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Remote Maintenance Platform
EdgeAccess1.0
-
EdgeAccess1.0
EdgeAccess1.0
EdgeAccess1.0
-
