Product Model

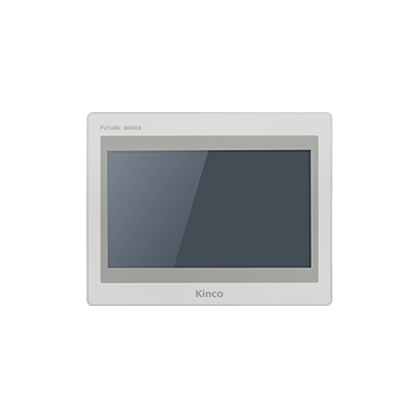

F2100E2 MAX
Add comparison
Cancel comparison

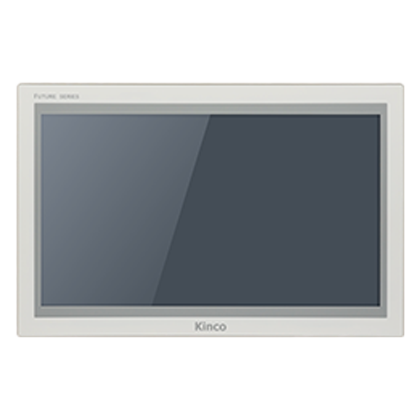

F2156E2 MAX
Add comparison
Cancel comparison

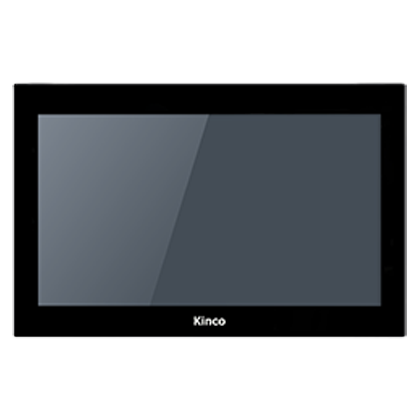

F2156E2-PX MAX
Add comparison
Cancel comparison

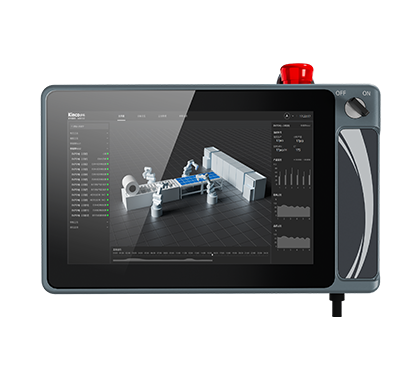

SZ10PES MAX
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1
15.6
15.6
10.1
Display Area (mm)
222.72mm(H)x 125.28mm(V)
344.16(W)x193.59(H)
344.16(W)x193.59(H)
133mm(H)x 215mm(V)
Resolution
1024*600
1920*1080
1920*1080
1920*1200
Display Colors
16.7 million
16.7 million
16.7 million
16.7 million
Viewing Angle
89/89/89/89 (L/R/T/D)
89/89/85/85 (L/R/T/D)
89/89/85/85 (L/R/T/D)
85/85/85/85 (L/R/T/D)
Contrast Ratio
1000:1
1000:1
1000:1
600:1
Backlight
LED
LED
LED
LED
Brightness (cd/m²)
350
250
250
350
Backlight Life
50000 hours
50000 hours
50000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire precision
resistive network
4-wire precision
resistive network
Capacitive Glass
Touch Panel
Capacitive Glass
Touch Panel
Processor
Fold up
Expand
CPU
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
GPU
-
-
-
-
NPU
-
-
-
-
Memory
Fold up
Expand
RAM
2GB
2GB
2GB
2GB
Flash Memory
64GB
64GB
64GB
64GB
Interfaces
Fold up
Expand
USB Host
1
1
1
1
USB Slave
1
1
1
0
Ethernet
2
2
2
1
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485/RS422
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS485/RS422;
COM2:RS232
4G
-
--
--
--
Wi-Fi
-
--
--
--
Audio Interface
-
--
--
--
Other Interfaces
-
--
--
--
HDMI
-
--
--
--
RFID
-
-
-
Built-in
Programmable Keys
-
-
-
-
Selector Switch
-
-
-
1
Emergenccy Stop
-
-
-
1
Grip Switch
-
-
-
1
LED Indicator
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
DC18V-28V
DC23.2V-26.4V
Power Consumption
7W@24VDC
15W@24VDC
15W@24VDC
20W@24VDC
Allowable Power Loss Time
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Voltage Endurance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Metal
Metal
Engineering plastic
Dimensions (mm)
271x213x38(mm)
395x259x25.5(mm)
395x259x25.5(mm)
301x188x70(mm)
Panel Cut-out (mm)
260x 202(mm)
382x246mm
382x246mm
-
Mounting
Panel mounting
Panel mounting & Bracket mounting (100*100)
Panel mounting & Bracket mounting (100*100)
Suspension mounting & Handheld
Cable
-
-
-
10-meter 24-core flexible cable
Mounting Accessories
-
-
-
SZ10-BOX
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
-10~60°C
-10~60°C
-10~60°C
Operating Humidity
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Protection
Fold up
Expand
Power Isolation
Yes
Yes
Yes
Yes
Serial Port Isolation
-
-
-
-
PCB Coating
Yes
Yes
Yes
Yes
Degree of Protection
Front panel: IP65
Front panel: IP65
Front panel: IP65
Whole unit: IP54
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
